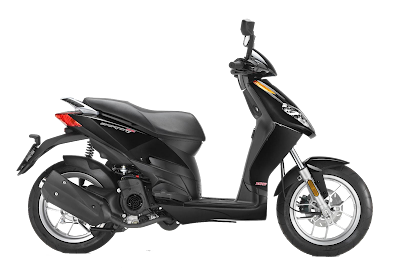

Aprilia Sportcity cube 125cc, 300cc.

Written By Makharis Agus Yahya on Jul 7, 2013 | 11:20 PM




Spesifikasi Teknis Aprilia Sportcity :
Spesifikasi Aprilia Sportcity cube 125, 300 cc.
Dimensi (PxL):1.985 x 890 mm.
Jarak Sumbu Roda:1.360mm.
Jarak Terendah Ke Tanah:-
Ketinggian Tempat Duduk:815mm.
Berat Kosong:-
Radius Putar Minimum:-
Suspensi Depan:Hydraulic Teleskopic fork with 35mm stanchions, wheel travel 100mm.
Suspensi Belakang:Engine unit acting as swing arm, double hidraulic shock absorber with adjustable spring pre-load, wheel travel 80mm.
Ukuran Ban Depan:120/70-15" Tubeless.
Ukuran Ban Belakang:130/80-15" Tubeless.
Rem Depan:Cakram, 260mm disc with hidraulic transmission.
Rem Belakang:Cakram, 220mm disc with hidraulic transmission.
Kapasitas Tangki Bahan Bakar:9 Liter, 1,5 Liter cadangan.
Kapasitas Minyak Pelumas Mesin:-
Tipe Rangka:Single cradle frame in high tensile strength steel.
Tipe Mesin:-
Sistem Pendinginan:Berpendingin cair.
Sistem Suplay Bahan Bakar :Electronic injection (300cc).
Karburator keihin (125cc).
Diameter x Langkah:75 x 63 mm (300cc),
57 x 48,6 mm (125cc).
Kapasitas Mesin:125 cc.
300 cc.
Daya Maksimum:16,5 kW (22,5 hp) @8000rpm(300cc).

11 kW (14,9 hp) @10.000rpm (125cc)
Torsi Maksimum:22 Nm pada 6500rpm. (300cc).
11,7 Nm pada 8000rpm (125cc).
Perbandingan Kompresi:11 : 1 (300cc),
12 : 1 (125cc).
Kopling:Automatic centrifugal dry clucth.
Transmisi:V-belt Automatic.
Pola Perpindahan Gigi:-
Starter:Electric.
Sistem Pengapian:-
Aki:-
Busi:-
